This file is generated by scripts/timings_enum_measure.py.
The benchmark first writes docs/timings-enum.tsv, then renders this
Markdown page and timing plots from that TSV.
Example timings from the opt-in performance benchmark, measured in release mode
on one development machine. Treat them as indicative, not as a portability,
stability, or universality guarantee.
This is a small curated benchmark: 9 molecules, 2 writer modes, and
7 timing repeats per row.
This is not a workload study and not an exact-versus-exact comparison.
Support: the size of the exact rooted SMILES support across all root atoms.
Grimace enum (per-root union): union of
MolToSmilesEnum(..., rootedAtAtom=root_idx, canonical=False, doRandom=True, isomericSmiles=<table mode>)
over every root atom.
The direct public MolToSmilesEnum(..., rootedAtAtom=-1, ...) path is
not timed in this column and can differ materially from the explicit
per-root union shown here.
Decoder enum (branch-preserving, per-root): exhaustive traversal of
MolToSmilesDecoder(..., rootedAtAtom=root_idx, canonical=False, doRandom=True, isomericSmiles=<table mode>).next_choices
over every root atom, then unioned.
Decoder enum (determinized, per-root): the same per-root traversal,
using MolToSmilesDeterminizedDecoder(...).
Decoder enum (determinized, merged): the same merged traversal,
using MolToSmilesDeterminizedDecoder(...).
RDKit to 1/2 support: repeated RDKit MolToSmiles(..., canonical=False,
doRandom=True, rootedAtAtom=root_idx, isomericSmiles=<table mode>) draws
across all roots until half of the exact support has been seen.
RDKit to full support: the same sampling process until the full exact
support has been seen.
In this benchmark, Non-stereo means isomericSmiles=False with the other
writer flags at their defaults.
Stereo means isomericSmiles=True with the other writer flags at their
defaults.
All timing columns are shown as time mean ± std.
The two RDKit columns also show (draw mean ± std) over repeated seeded
trials.
The published table does not directly rank every public exact path:
it times Grimace enum (per-root union) rather than the direct
public MolToSmilesEnum(..., rootedAtAtom=-1) path, and some
merged decoder rows are numerically lower than that per-root
union column.
The merged decoder rows expose the public all-roots decoder path directly,
so they can diverge substantially from the explicit per-root rows.
Decoder rows measure exhaustive traversal of complete support. They do
not measure initialization alone or one selected generation/validation
trajectory.
Read the RDKit comparison as ‘faster on this benchmark against this
sampling baseline’, not as a general claim about every molecule or
every SMILES-writing workload.
The determinized decoder can reduce exhaustive decoder cost on some
molecules, but direct exact enumeration is still faster on these cases.

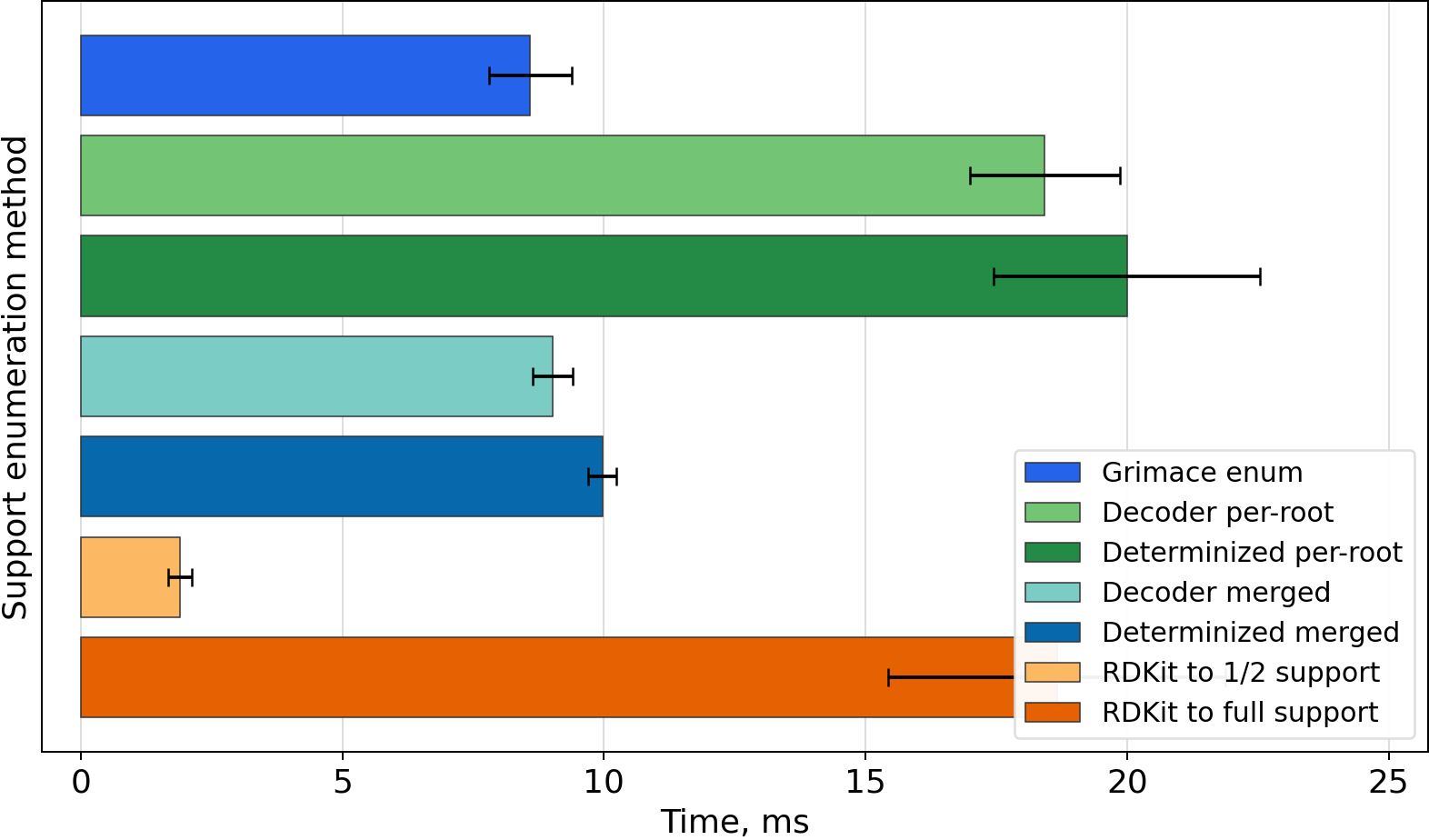

![Timing bar chart for CN1CCC[C@H]1c1cccnc1](timings-enum-plots/non-stereo-03.png)

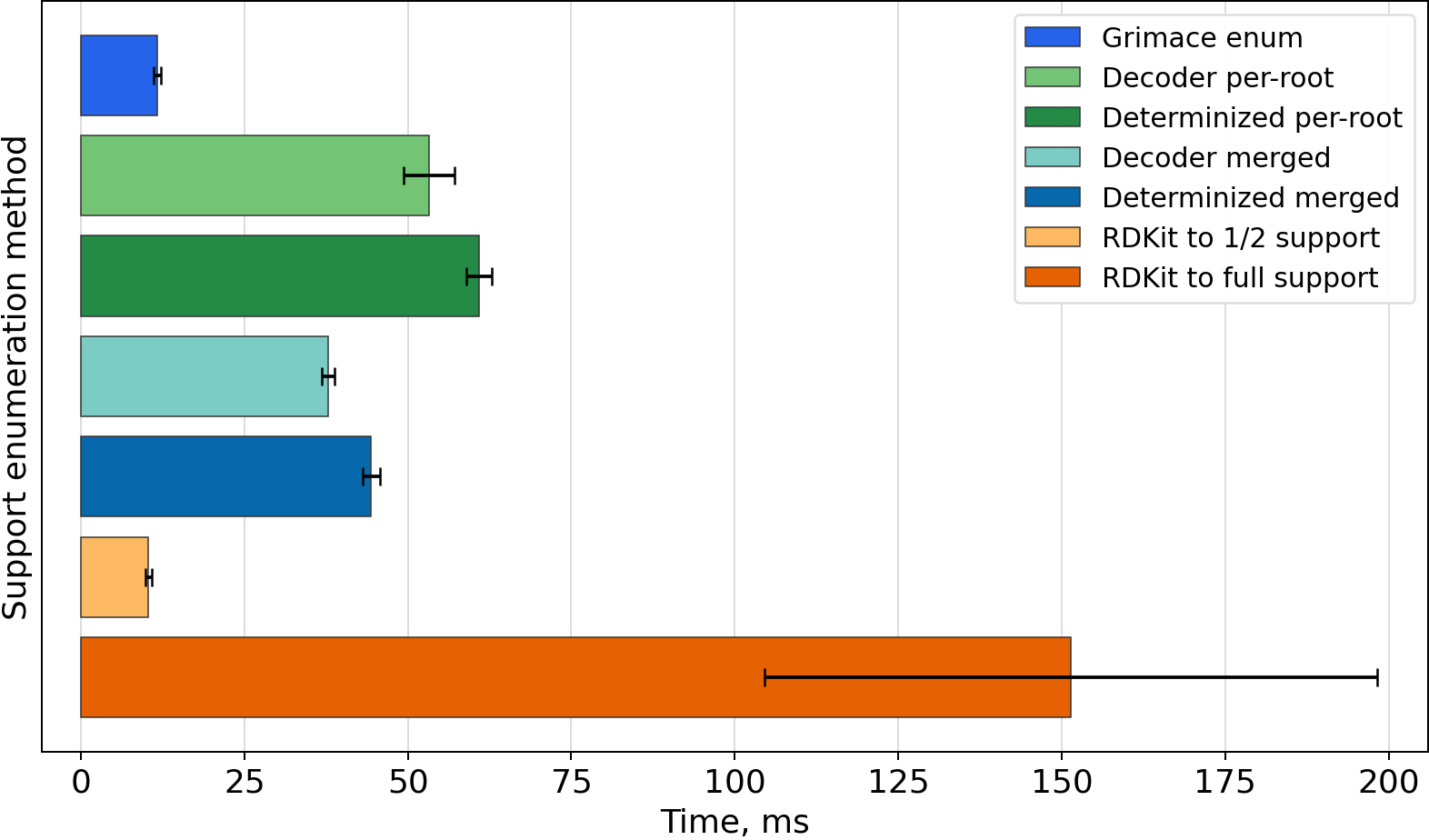

c(O)c1)C(=O)O](timings-enum-plots/non-stereo-05.png)

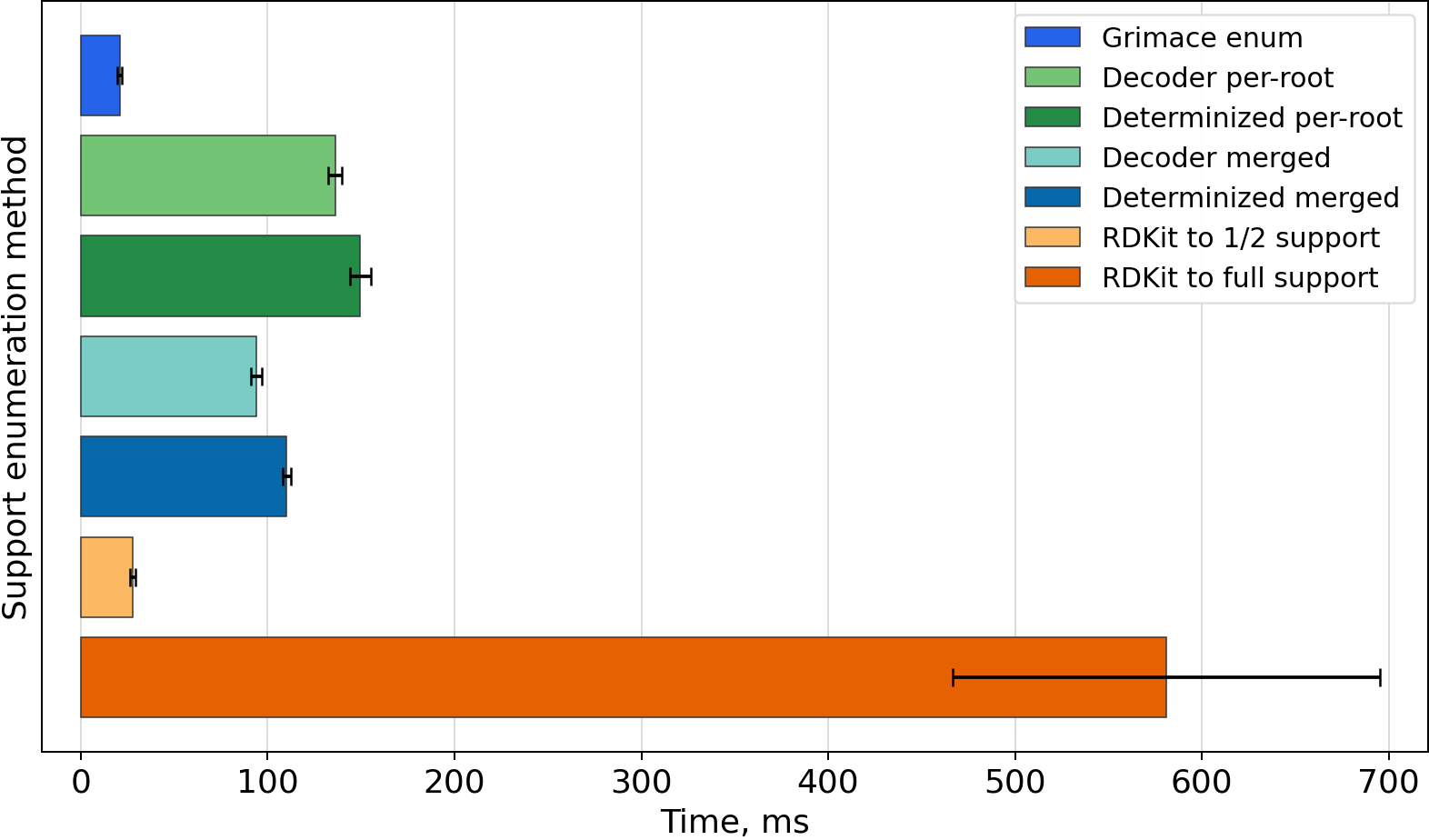

C(=O)O)ccc2c1](timings-enum-plots/non-stereo-06.png)

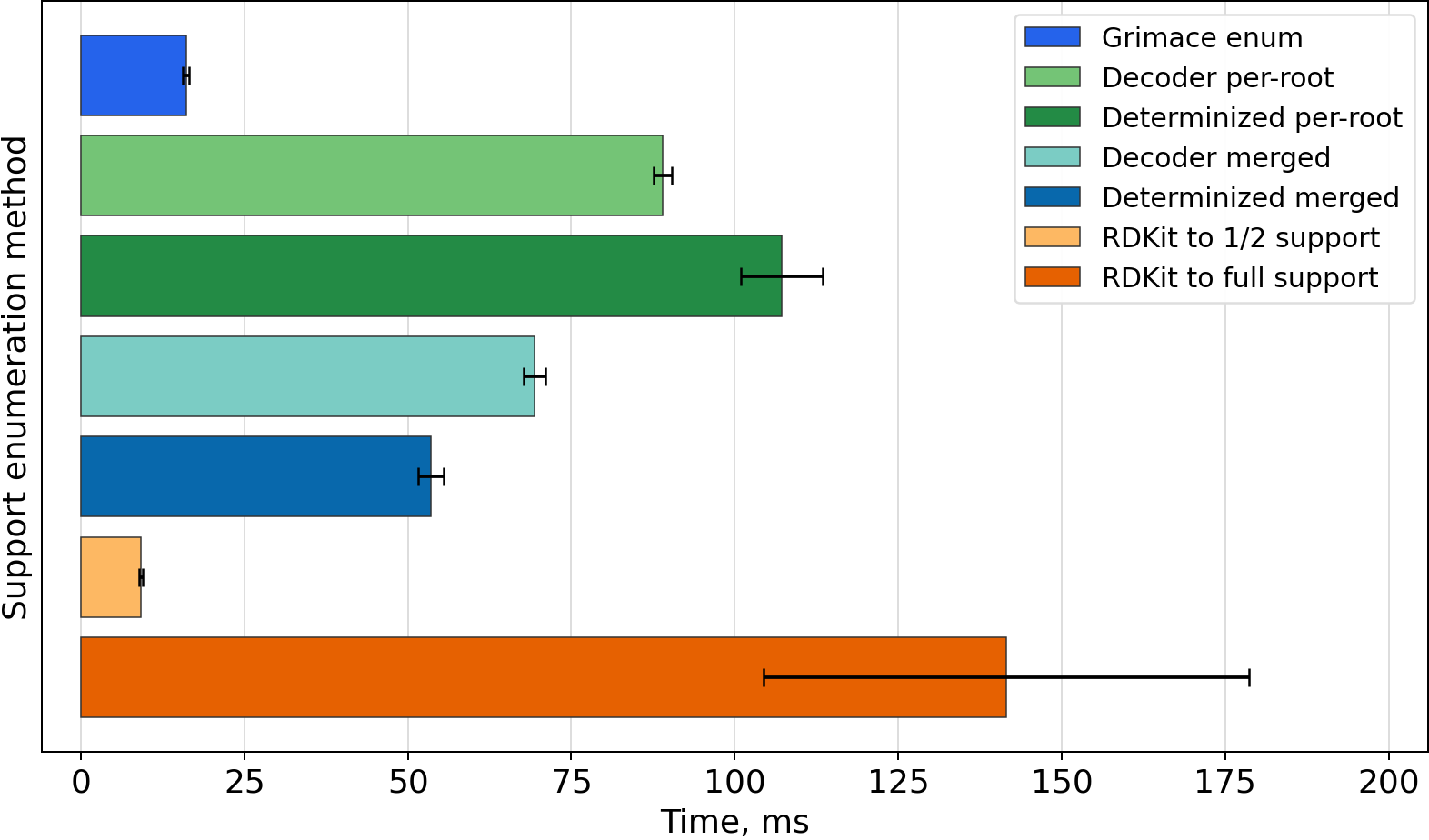

O[C@H]1CO[C@H]2[C@@H]1OC[C@H]2O[N+](=O)[O-]](timings-enum-plots/non-stereo-07.png)

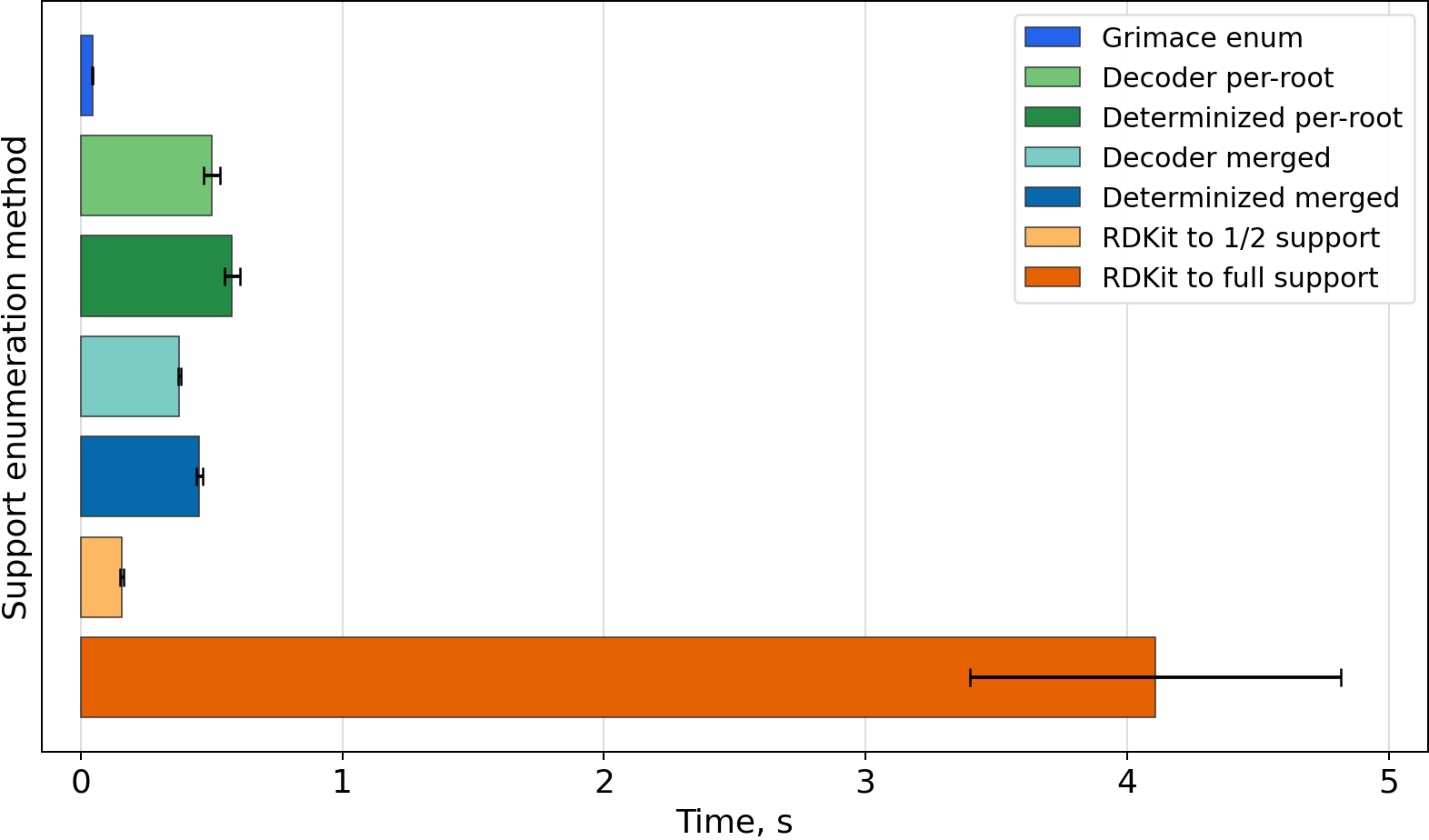

C/C1=C/C=C1\CCC[C@]2(C)[C@@H]([CH]C)CC[C@@H]12](timings-enum-plots/non-stereo-08.png)

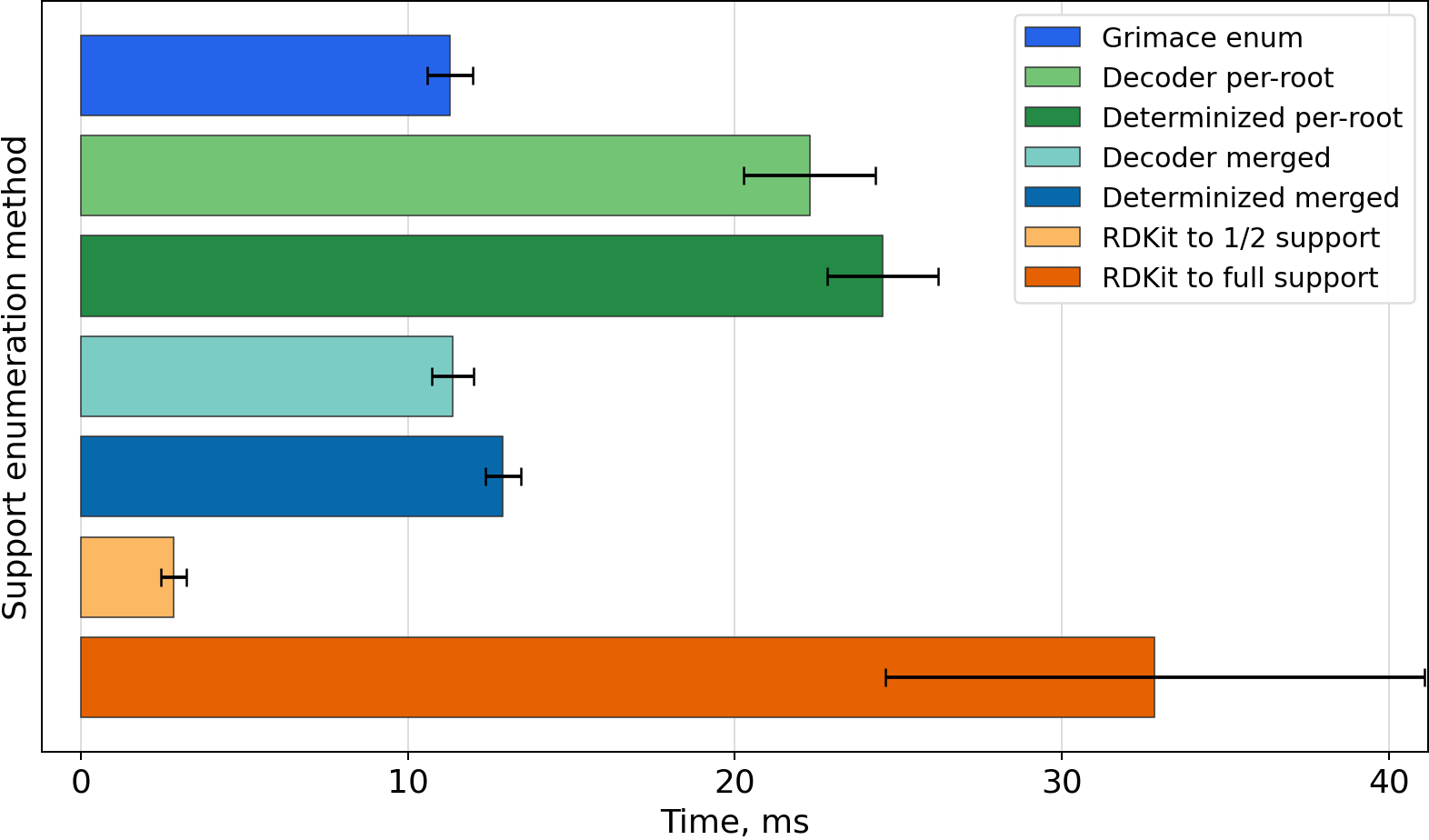

![Timing bar chart for CN1CCC[C@H]1c1cccnc1](timings-enum-plots/stereo-03.png)

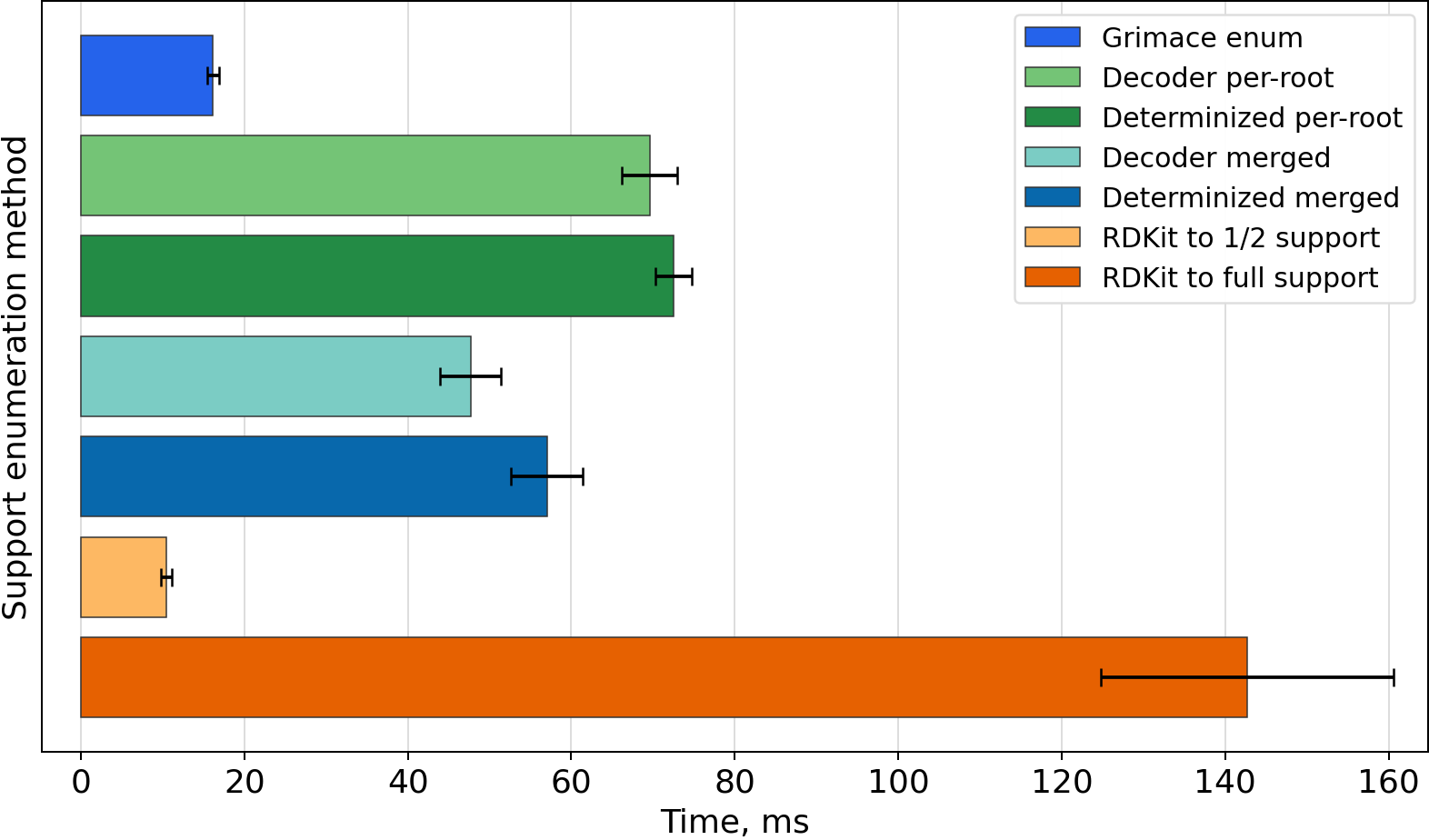

c(O)c1)C(=O)O](timings-enum-plots/stereo-05.png)

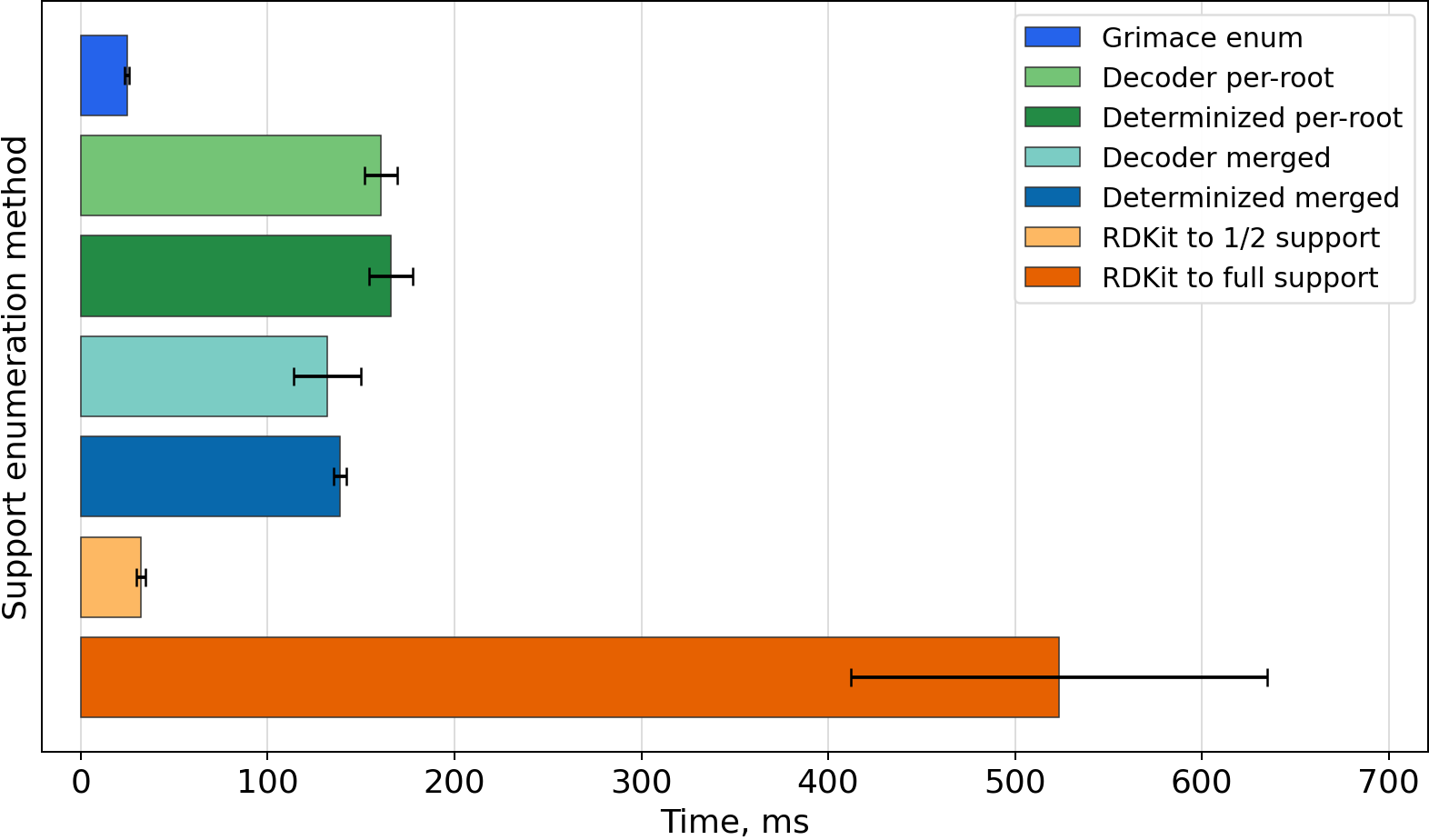

C(=O)O)ccc2c1](timings-enum-plots/stereo-06.png)

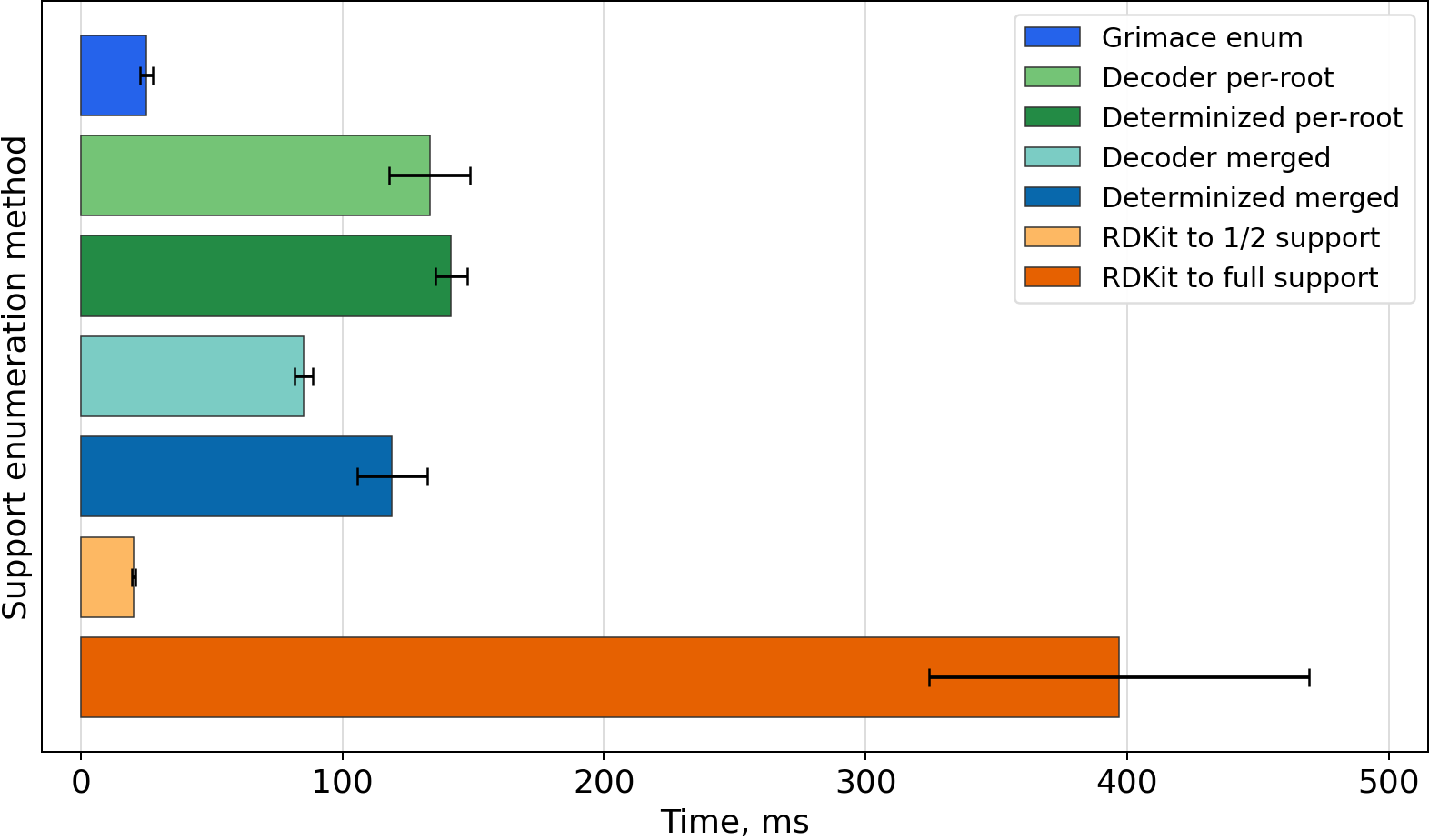

O[C@H]1CO[C@H]2[C@@H]1OC[C@H]2O[N+](=O)[O-]](timings-enum-plots/stereo-07.png)

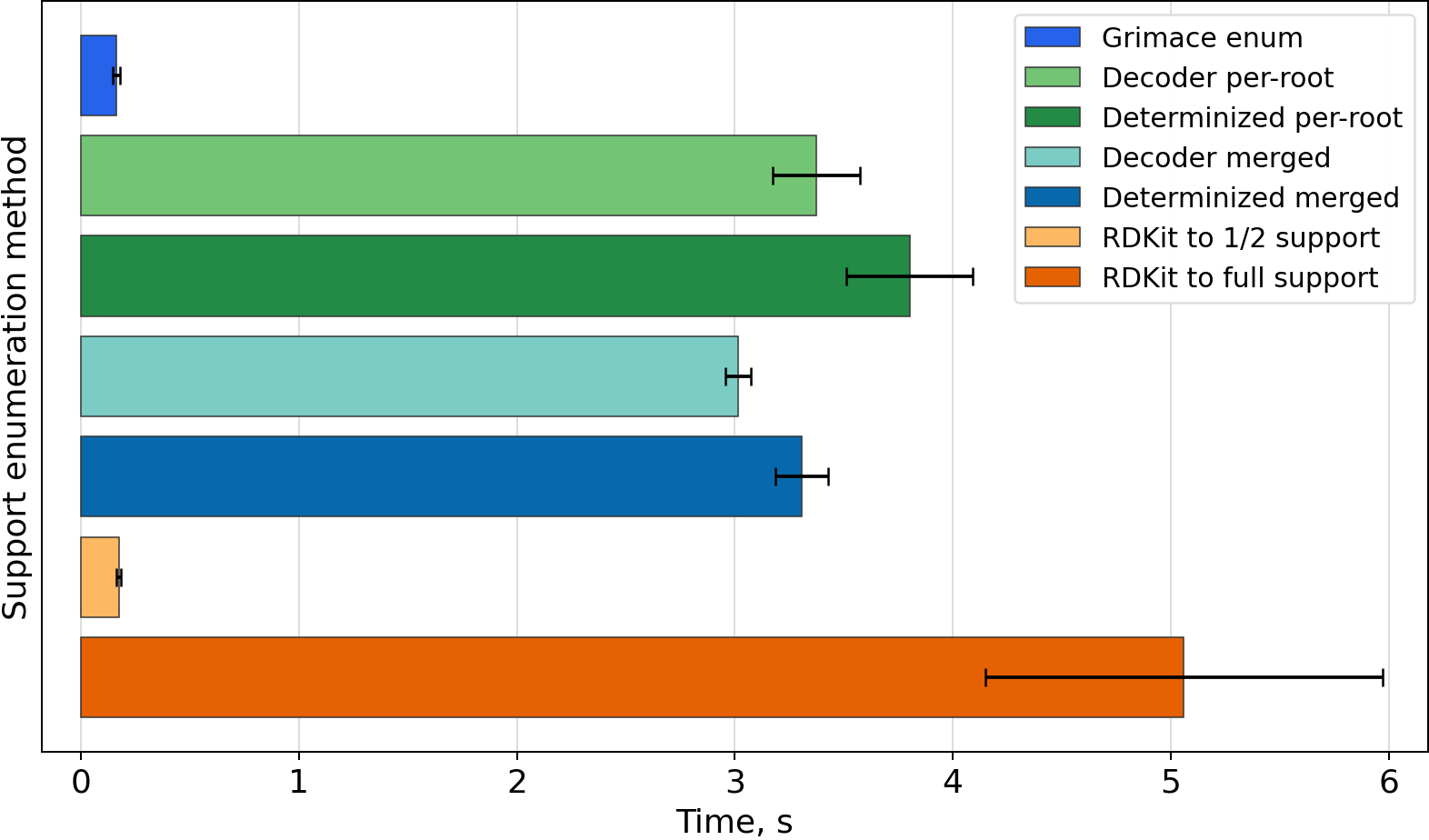

C/C1=C/C=C1\CCC[C@]2(C)[C@@H]([CH]C)CC[C@@H]12](timings-enum-plots/stereo-08.png)
